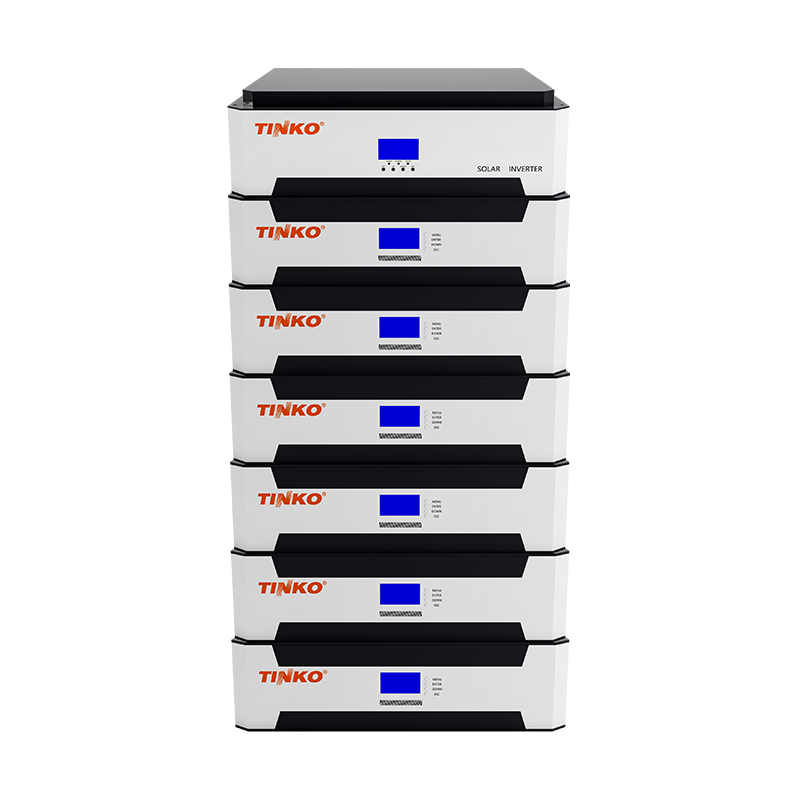

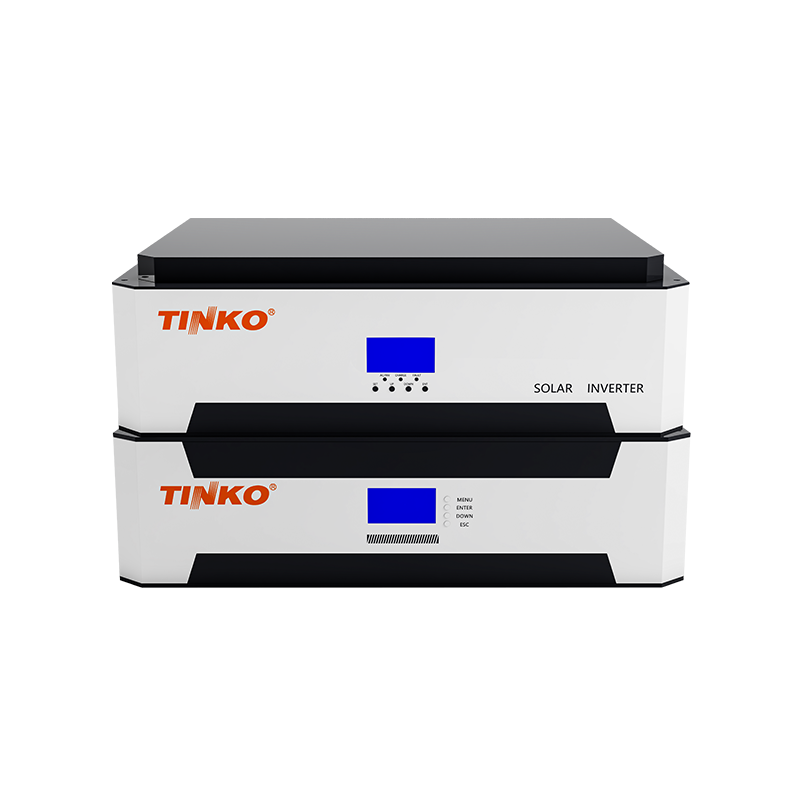

All-in-One Energy System

Model: Low Voltage Stackable All-in-One Energy System

PV Input (DC)
PV Max Input Voltage: 500V
PV Opearating Voltage range: 120-500Vdc
MPPT Voltage MPPT: 120-450Vdc
PV Max Input Current: 80A

Urban Power Grid Input (AC Input)
Input Voltage: 220/230Vac
input Voltage Range: (170Vac~280Vac)+2%; (90Vac-280Vac)+2%
Efficiency: >95%
Frequency: 50Hz/ 60Hz
Max Bypass Overload Current: 40A

Inverter ( AC Output)
Output Voltage Waveform: Pure Sine Wave
Rate Output power: 5000W
Rate Output Voltage: 230Vac
